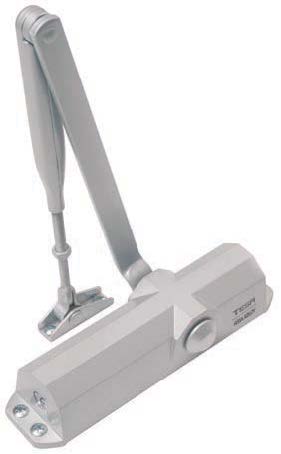

The CT5OO is a door closer that offers good performance in a compact size.
It can drive doors from size 2 to 3. This means theat the CT5OO will feel comfortable closing doors weighing from 40 to 60kg. and Up to 950mm door width.
This capability is achieved in a single model thanks to the available position installation system.
• Rack and pinion mechanism for smooth and reliable operation.
• Tow valves to adjust both sweep and latch speeds separately.
• Two sizes (EN2 and EN3) in a single model.
• Reversible.
• CT501 model permits to hold the door open at any position between 0° and 180°.
• Suitable for doors opening inwards or outwards:
– Standard mounting: door open inwards, mounting on the pull side
– Transom mounting: door open outwards, mounting on the push side.
Four finishes: White (BL), Black (NE), Silver (PL) and Gold (OR).
| Size | Door Width cm | Door Weight kg |
| 2 | 85 | 40 |
| 3 | 95 | 60 |
| Version | Model Description (Body+ Arm) | Finish | EN | Item Code |
| CT5OO | CT5OO Link Arm Door Closer (Standard arm) | Silver | EN 2-3 | CT50023PL |
| CT5OO | CT5OO Link Arm Door Closer (Hold Open Arm) | Silver | EN 2-3 | CT50123PL |
Multi size door-closer (2-3-4) by means of three mounting positions.
CT1800 has been EN1154 certified and hence valid for fire Doors
Classification with EN1154:1996+A1:2002
Standard arm transom mountings:
❸ ❽ ❷/❹ ❶❶❹
With parallel arm bracket SOP1800
❸❽❸❶❶❹
Standard mounting: Pull Side
Transom mounting: Push Side
SOP1800 Parallel Arm installation bracket.
| Size | Door Width cm | Door Weight Kg |
| 2 | 85 | 40 |
| 3 | 95 | 60 |
| 4 | 110 | 80 |
| Version | Model Description | Finish | EN | Max Door Dimension | Door Weight | Item Code |
| CT1800 | Fire Rated Link Arm Door Closer (Non Hold Open) | Silver | EN 2-4 | 110cm width | 80kg | CT180034PL |
| CT1800 | Fire Rated Link Arm Door Closer (Hold Open) | Silver | EN 2-4 | 110cm width | 80kg | CT180134PL |
| Version | Model Description | Finish | EN | Max Door Dimension | Door Weight | Item Code |
| SOP1800PL | CT1800 Parallel Arm Installation bracket | Silver | – | – | – | Sop1800PL |
CT3000 closers offer the most refined size and speed adjustment capability, an outstanding power adjustment scope and impressive hydraulic control for heavy doors up to 160 kg. These and
other characteristics make it be the professional’s choice for any heavy duty door subjected to high traffic volumes, wind draughts or even abuse.
EN1154 certified: EN1154:1996+A1:2002
CT300036 with link arm: 4 8 2/6 1 1 4
CT300036 with guide rai 4 8 1/4 1 1 4
Continuously adjustable size from EN2 to EN6.
» CT300036 combined with guide rails is size adjustable from
ENl to EN4.
» Backcheck valve to protect the door against violent openings.
» CT300C36 includes Delayed Action valve.
» DCL192: Adjustaable hold open arm.
» Internal Safety Valves protect the closer mechanism and door
environment from rough or abusive use thancks to, their pressure relief action.
» Outstanding thermal behaviour. Working temperature: -35ºC
to 50ºC
| Size (EN 1154) | Door width cm | Door weight Kg |
| 2 | 85 | 40 |
| 3 | 95 | 60 |
| 4 | 110 | 80 |
| 5 | 125 | 100 |
| 6 | 140 | 120 |
Closing time versus temperature
| Version | Model Description (Body Only) | Finish | EN | Item Code |
| CT3000 | CT3000 Link Arm Door Closer | Silver | EN 2-6 | CT300036PL |
| CT3000 | CT3000 Link Arm Door Closer (Delayed Action) | Silver | EN 2-6 | CT300C36PL |
Note:Please order Arms separately to fit your application.
Compitable arms: DCL190, DCL192, DCG193
Standard arm, for CT3000
| DCL190 Standard arm | |
| Model | Finish |
| DCL190 – – – – – EV1 – | Silver |
| DCL190 – – – – – 35 – – | Stainless Steel |
| DCL190 – – – – – 9005 | Black |
| DCL190 – – – – – 9016 | White |
Standard guide rail, for CT3000, CT4500 and CT5000
| Model | Finish |
| DCG193 – – – – – EV1 – | Silver |
| DCG193 – – – – – 9005 | Black |
| DCG193 – – – – – 9016 | Whte |

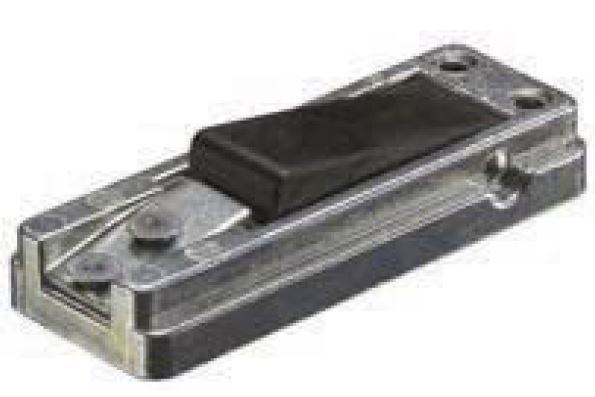

Hold open device for DCG193 and DCG195 guide rails. Max. Hold Open position:150º. Includes Hold Open force adjustment.
| Model | Finish |
| DCA152 – – – – – – – – |
Hold open arm, for CT3000
| DCL192 hold open arm | |
| Model | Finish |
| DCL192 – – – – – EV1 – | Silver |
| DCL192 – – – – – 9005 | Black |
| DCL192 – – – – – 9016 | White |
Opening limit device for DCG193 and DCG195 guide rails. Max door stop position: 150º.
| Model | Finish |
| DCA153 – – – – – – – – |
| Version | Model Description (Body Only) | Finish | EN | Item Code |
| DCL190 | Standard arm for CT3000 | Silver | – | DCL190 – – – – EV1- |
| DCL192 | Hold Open arm for CT3000 | Silver | – | DCL192 – – – – EV1 – |
| DCL193 | Standard Guide Rail for CT3000 | Silver | – | DCL193 – – – – EV1 – |
| Version | Model Description (Body Only) | Finish | EN | Item Code |
| DCA152 | Hold Open Device for DCG193 | – | DCA152 – – – – | |
| DCA153 | Opening limit | – | – | DCA153 – – – – |

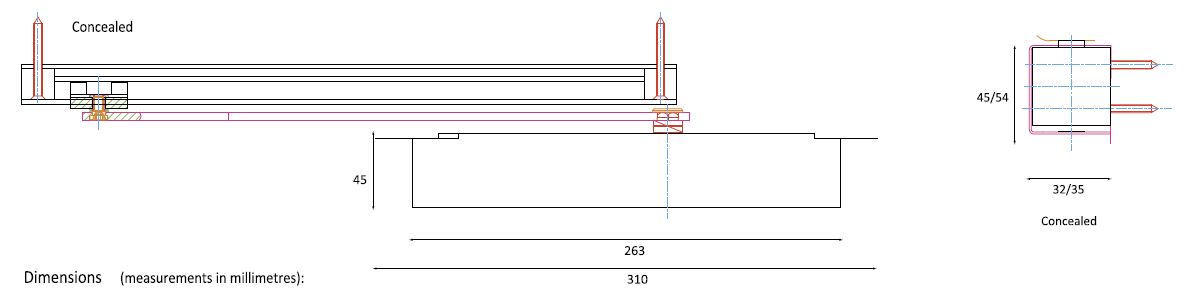

The Exidor 6000 Series concealed and slimline range offers two closers, one which is concealed within the door. The concealed version is particularly suitable for use where discreet door control is preferred or where there is a high risk of vandalism. The concealsed unit also has a retrofit option which offers easier fitting as it does not require the door frame to be cut to accommodate the slide arm track.
Adjustable power size EN2-4 with adjustable closing and latching speed. Non-hold open and Hold open version as standard. Also available with backcheck option. 6800 concealed door closer also available with double action option.
