AGB Eclipse 3.0 Concealed Hinges

For flush doors with or without rebate and for aluminium doors

• Suitable for both wooden and aluminium frames and doors, thanks to the 4mm thickness of the hinge fastening.
• Completely invisible thanks to reduced dimensions.
• Easy installation: sash and frame parts can be installed separately during production and joined on-site.
• Covers with coverplate.
• Three adjustments completely independent using a unique 4mm alien key:

❶ pressure adjustment ± 1mm

❷ vertical adjustment ±2mm

❸ horizontal adjustment ±1.5mm

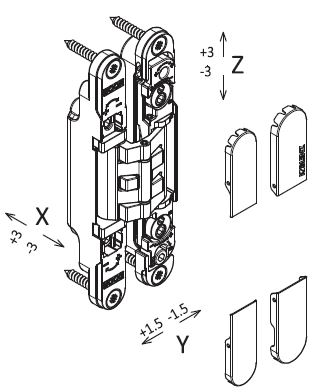

Eclipse 3.0 – Adjustable Concealed Hinge for Flush Doors (Material ZAMAK)

Description

Reversible concealed hinge with a frame part reduced to 20.5mm. Eclipse 3.0 is adjustable on 3 axis and allows a 180° opening. It is suitable for flush doors, with and without rebate and aluminium doors.

Capacity

40kg with 2 hinges, 60kg with 3 hinges.

Fastening

Fastening Mill frame and sash parts as you can see in the drawing and fasten hinge with specific screws.

• Frame part: Ø 4.5 x 35mm,
• Frame part with telescopic cover plate: Ø 4.5x 20mm
• Sash part: Ø 4.5 x35mm for higher length)

White RAL 9010

One item is 1pc of hinge only.

Please order the cover separately.

Covers kit for Eclipse 3.0

One item is for a set of cover for 1 Eclipse Hinge.

Please check with our sales team for other available finish.

Adjustable Butt Hinge for Flush Fire Doors – AGB-R120

Description

Adjustable 0 20mm Hinge, for flush doors, with overlapped simmertrical leaves. Stainless steel body pin, with rotating ball on top for a better rotation of the hinge. Designed for 4.5mm gap between sash and frame, when the leaves are housed in the milling.

Just use 2 pieces of hinge to hold up to 120kg door. No more worry about un-alignment of the hinges due to adjustable function. R120 Hinges ensures the smooth operation of the doors with fast and easy installation.

Vertical adjustment: 6mm vertival adjustment with 5mm Allen wrench by operationg the screw on the base of the hinge body.

Mounting

Mount the leaves housing on the milling and fix with 0 4.5mm screws, at least 40mm long, accord-ing to the requirements.

N B.

Screws are not included

Technical

Door up to 120Kg with 2 pieces of hinge.

R120 Hinges – Fire Rated Hinges

One item is only 1 pc of Hinge.

KOBLENZ Concealed Hinges

Krona Koblenz Is a leading Company in Europe In the manufacturing of concealed hinges. The Koblenz production Is the result of a long planning and verification through which It has developped a wide catalogure in order to satisfty every kind of customer’s requirement.

Kranz Koblenz’s aim has always been to guarantee the absolute quality of technology and materials, the perfect functionality of every single system and its complete reliability with the time.

As a confirmation of the quality of every single project, Konlenz has covered most part of his products with an International patent protected by an international copyright. International accepted Certification are also covered for related products.

Concealed hinges Complete range up to 200kg doors

ATOMIKA

KUBICA

KuBi7

KOMBI

KOBLENZ CERTIFICATION …

Why asking for a certified product?

Because a certified product is an excellence! Certification means testing the products according to the severe tests at internation-al labs, and after passing the tests the product will obtain the certification which attests its entire correspondence to the best performaing parameters.

Fire Certification:

It’s essential for the fulfillment of all the projects or installation in the environment and buildings, above all in the public ones, where the specific safety standards must be applied. Actually, it is not possible to participate in tenders if the products lack the certification.

What does CE marking mean?

It is not a mark of “quality” or of “origin”, hence it does not mean “Made in Europe”. CE marking indicates that a manufacturer of a specific product has officially declared the performance related to the essential safety features required by the standards indicated in the construction products regulation (CPR). In particular, it’s about the mechanical resistance, dimensional and colour stability, fire-resistance, environmental hygiene and health, as well as application safety and corrosion resistance.

It is not enough to say “my hinge is certified”

A lot of individual state that they have various certificates. Please pay attention: there is much difference between real certification and teh presumed ones! In order to apply and to keep the CE marking on our hinges a performance regularlity attention is required which consists in the audit of our production plants twice a year and in repeated tests of each production batch.

Which certification are recognized?

If you are looking for a concealed hinge, you expect to receive a product in compliance with EAD 020001-01-0405, because it is the only testing procedure valid for the concealed hinges! Actually EN1935 requirement does not meatch exactly this door hinges types, but it only refers to one-axis hinges which absolutely differ from the multi-axis hinges.

The certifications obtained by Koblenz Hinges:

KUBICA KUBICENTER K6400

Hinge with patented self-adjusting screw system

Ordering Information:

Note: each item includes one hinge, covers & fixing screws.

Tested on doors: thickness 30mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask fortress Land for feasibility.

KOMBI 3 – K1000

3 axis adjustable hinge 5 fulcrums

Ordering Information:

Note: each item includes one hinge and covers.

Tested on doors: thickness 35mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask fortress Land for feasibility.

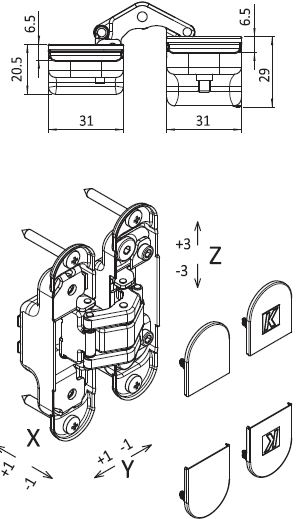

KUBICA K2400

3 axis adjustable hinge 5 fulcrums

Ordering information:

Note: each item includes one hinge, covers & fixing screws.

Optional accessories:

Tested on doors: thickness 25mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask fortress Land for feasibility.

ATOMIKA K8000

3 axis adjustable hinge 7 fulcrums

Ordering Information:

Note: each item includes one hinge, covers & fixing screws.

Optional Accessories:

Tested on doors: thickness 38-45mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask fortress Land for feasibility.

ATOMIKA SLIM K8060

3 axis adjustable hinge 7 fulcrums

Ordering Information:

Note: each item includes one hinge, covers & fixing

Optional Accessories:

Tested on doors: thickness 32mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask Fortress Land for feasibility.

KUB17 K7080

3 axis adjustable hinge 7 fulcrums

Ordering Information:

Note: each item includes one hinge, covers & fixing screws.

Optional Accessories:

Tested on doors: thickness 40mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask Fortress Land for feasibility.

KUB17 K7120

3 axis adjustable hinge 7 fulcrums

Ordering information:

Note: each item includes one hinge, covers & fixing.

Optional accessories:

Tested on doors: thickness 40 – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask Fortress Land for feasibility.

KINOX – K7316

3 axis adjustable hinge 7 fulcrums

Ordering Information:

Note: each item includes one hinge & fixing screws.

Tested on doors: thickness 40mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask Fortress Land for feasibility.

KUB17 K7200

3 axis adjustable hinge 7 fulcrums

Ordering information:

Note: each item includes one hinge, covers & fixing screws.

Optional Accessories:

Tested on doors: thickness 40 – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask Fortress Land for feasibility.

KUB17 KUBICA TWIST – K2000

Hinge with integrated self-closing system

Ordering Information:

Note: each item includes one hinge, covers & fixing screws.

Optional Accessories:

Tested on doors: thickness 40mm – height max.2100mm – width max 900mm. For the larger dimension than those indicated and additional accessories application, please ask Fortress Land for feasibility.
