INSTITUITIONALSTAINLESS STEEL HANDLES

Premium institutional handle

Mare

The Mare handle is among the high-range institutional handles, aimed at public building, hotels, auditoriums, etc. Extremely resistant, it has been designed byRicardo Bofill and Marta Vilallonga’s renowned studio. It combines beauty, functionality and solidity.

It meets the legislation currently in force for building fitting standard En1906 and reaches the highest degree in use, durability and corrosion resistance categories.

Finish ISD, features to highlight:

• Unaffected by sweating

• Unaffected by the atack of solvents

• Employed as a protection tool with medical instruments

• Highly resistant to corrosion due to the chrome founda­tion previous to the application of PVD.

• The external layers are three times stronger than chromium.

• Resistant to ultraviolet rays. The colour of the finish will not wear off, which is ideal for outdoors.

Fixing system

Bolts: patented MARE fixing system. Hidden screws are used in order to prevent handle from being stolen.

PVD Finish.

• Highly resistant finish that gives the handle a metallic look. PVD is equivalent to a chrome or stainless finish

with a metallic brass look.

• From PVD we obtain the finishes ISD and LPD. Minimum corrosion resistance {ASTM-B117 /90).

• CM, CR, PVD and 1516 finishes: up to 500 hours.

Premium institutional handle

Mare

The pack with a round rose includes

A set of handles, a 8×105 mm expansion spindle, 2 recoil springs, 8 coach screws, 2 M6x9 bolts, an Allen key. It includes instructions.

Finishes: PVD lnox, PVD Polished Brass.

(Note: Cylinder covers & privacy turns are sold separately)

TESA Mare Lever Handle on Square Rose

Description Code Finish
TESA Mare – Lever Handle on Square Rose MMSRC8001SD PVD lnox
ESA Mare – Lever Handle on Square Rose MMSRC800LPD PVD Polished Brass

Important Note: cylinder cover sold separately.

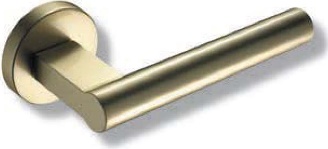

TESA Mare Lever Handle on Round Rose

Description Code Finish
TESA Mare – Lever handle on rose MMSR80015D PVD lnox
TESA Mare – Lever handle on rose MMSR800LPD PVD Polished Brass

Important Note: cylinder covers sold separately.

TESA Mare Door Pull

Description Code Finish
TESA Mare – Pull 400mm (Single) TICM40201SD PVD lnox
TESA Mare – Pull 400mm (Single) TICM4020LPD PVD Polished Brass
Accessories
Kit For Glass Door KITMCRIS

Premium institutional handle Accessories

Squared key holes

The pack includes: » A set of supporting piecesand covers

» 8 screws.

Squared thumb turns

The pack includes: A set of supporting pieces and covers, 8 coach screws, an axis thumbturn spindle, an emergency spindle, a handle spindle, a 6x52m spindle, a M4x18 torx screw and 2 supporting pieces.

Accessories – TESA Mare Square

Description Code Finish
TESA Mare – Square Cylinder Covers MACBORBOMISD PVD lnox
TESA Mare – Square Cylinder Covers MACBORBOMLPD PVD Polished Brass
TESA Mare – Suqare Thumb Turns MACBOREMEISD PVD lnox
TESA Mare – Suqare Thumb Turns MACBOREMELPD PVD Polished Brass

Dimensions: 48mm

Rounded key holes

The pack includes: A set of supporting pieces and covers. 8 screws.

Rounded thumb turns

The pack includes: A set of supporting pieces and covers, 8 coach screws, an axis thumbturn spindle, an emergency spindle, a handle spindle, a 6x52m spindle, a M4x18 torx screw and 2 supporting pieces.

Accessories – TESA Mare Round

Description Code Finish
TESA Mare – Round Cylinder Covers MABORBOMISD PVD lnox
TESA Mare – Round Cylinder Covers MABORBOMLPD PVD Polished Brass
TESA Mare – Round Thumb Turns MABOREMEISD PVD lnox
TESA Mare – Round Thumb Turns MABOREMELPD PVD Polished Brass

Dimensions: S3mm

Institutional stainless AISI 316 handle

AISl316 stainless steel also known as ‘marine steel’ due to it’s excellent behaviour in agressive and saline enviroments, brings a long lasting finishes and long life time of the lever handles.

Sena AISI 316 handles come in a complete range to suite different door functions. Suitable for marine offshores facilities, commercial buildings, hospitals, schools, factories, infrastructure buildings & other public facilities. UNE-EN1906 and UNE-EN 1670 certificates guarantee CE standard for building fittings and corrosion, chemical attack & ultraviolet resistance even in outdoors installations.

Sena AISI 316 – Rosette

The pack with a rosette includes: a set of handles with an nternal plate and a cover, 8x105mm spindle, 2 recoil springs, internal plate and a cover, 8x105mm spindle, 2 recoil springs, 4 coach screws, 2 through bolts, 2 bolts and an allen key.

Sena AISI 316 – Rosette

Description Code Finish
Sena AISI 316 – Lever Handle on Rosette MSSR800IS16 316 Stainless Steel

Important Note: Round Rose lever Handle Set Not Including Cylinder Covers.

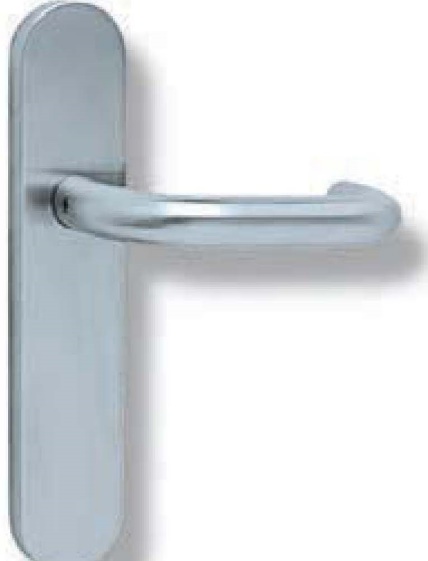

Sena AISI 316 – Long Plate

The pack with a long plate includes: a set of handles with an internal plate and a cover, a 8x105mm spindle, 2 recoil springs, 4 coach screws, 2 bolts and an allen key.

Sena AISI 316 – Long Plate

Description Code Finish
Sena AISI 316 – Lever Handle on Long Plate – Passage MSSL8001S16 316 Stainless Steel
Sena AISI 316 – Lever Handle on Long Plate with cylinder at 85mm MSOL8851S16 316 Stainless Steel

Sena AISI 316 – Square Plate

The pack with a squared plate includes: a set of handles with a 1.5mm thick internal plate and a cover, a 8x105mm

spindle, 2 recoil springs, 4 floating through bolts, 4 coach screws, 2 through bolts and an allen key.

Sena AISI 316 – Square Plate

Description Code
Sena AISI 316 – Lever Handle on Square Plate – Passage MSSC800IS16
Sena AISI 316 – Lever Handle on Square Plate – Cylinder at 85mm MSOC8851S16

Institutional stainless AISI 316 Escutcheons

Key holes Ø50

The pack includes:

» A set with support pieces and covers.

» 4 coach screws.

Finish

» IS316

Product code Finish
MB0RBOMIS16 316 Stainless

Thumb turns Ø50

The pack includes:

» A set with support pieces and covers.

» 4 coach screws.

Finish

» IS316

Product code Finish
MB0REMEIS16 316 Stainless

Blank

The pack includes:

» A set with support pieces and covers.

» 4 coach screws.

Finish

» IS316

Product code Finish
MB0ROOOIS16 316 Stainless

Sena AISI 316 Push & Pull Plates

Sena AISI 316 – Horizontal pull handle on square plate with cylinde hole
Description Code Finish
Sena AISI 316 – vertical pull handle on square plate with cylinder hole MSTI8851S16 316 Stainless

Sena AISI 316 – Horizontal pull handle on square plate
Description Code Finish
Sena AISI 316 – horizontal pull handle on square plate MSMT800 (half) 316 Stainless
Sena AISI 316 – horizontal pull handle on square plate MSTI800(double) 316 Stainless

Sena AISI 316 – vertical pull handle on square plate
Description Code Finish
Sena AISI 316 – vertical pull handle on square plate MSMT80V (half) 316 Stainless
Sena AISI 316 – vertical pull handle on square plate MSTI80V(double) 316 Stainless

Sena AISI 316 – vertical flush pull handle on square plate
Description Code Finish
Sena AISI 316 – vertical flush pull handle on square plate MSTI80EMIS16 (double) 316 Stainless

Sena AISI 316 – blank square plate
Description Code Finish
Sena AISI 316- blank square plate PCCIEGAIS16 316 Stainless

Institutional stainless AISI 304 handle

Sena AISI 304 handles come in a complete range to suite different door functions. Suitable for commercial buildings, hospitals, schools, factories, infrastructure buildings & other public facilities. UNE-EN1906 and UNE-EN 1670 certificates guarantee CE standard for building fittings and corrosion, chemical attack & ultraviolet resistance even in outdoors installations.

Sena AISI 304 – Rosette

The pack with a rosette includes: a set of handles with an internal plate and a cover, 8x105mm spindle, 2 recoil springs, 4 coach screws, 2 through bolts, 2 bolts and an alien key.

Sena AISI 304 – Rosette

Description Code Finish
TESA – Sena AISI 304 – Lever Handle on Rosette MSSR800IS 304 Stainless Steel

Important Note: Round Rose lever Handle Set Not Including Cylinder Covers.

Sena AISI 304 – Long Plate

The pack with a long plate includes: a set of handles with an internal plate and a cover, a 8x105mm spindle, 2 recoil

springs, 4 coach screws, 2 bolts and an alien key.

Sena AISI 304 – Long Plate

Description Code Finish
TESA – Sena AISI 304 – Lever Handle on Long Plate – Passage MSSL800IS 304 Stainless Steel
TESA – Sena AISI 304 – Lever Handle on Long Plate with cylinder at 85mm MSSL800IS 304 Stainless Steel

Sena AISI 304 – Square Plate

The pack with a squared plate includes: a set of handles with a 1.5mm thick internal plate and a cover, a 8x105mm

spindle, 2 recoil springs, 4 floating through bolts, 4 coach screws, 2 through bolts and an alien key.

Sena AISI 304 – Square Plate

Description Code Finish
TESA – Sena AISI 304 – Lever Handle on Square Plate – Passage MSSC8001S 304 Stainless Steel
TESA – Sena AISI 304 – Lever Handle on Square Plate – Cy linder at 85mm MSOC8851S 304 Stainless Steel

304 lever handle

Ladho stainless AISI 304

The pack with aa rosette includes: A set of handles with an internal plate and acover, a 8x105mm spindle, 2 recoil springs, 4 coach screws, 2 through bolts, 2 bolts and an Allen key.

Rosette Product code Finish
Rosette ML5R800 IS-

Important note: Lever handle set not including the cylinder cover. Please order cylinder cover separately as needed.

Oasis Stainless AISI 304

The pack with a rosette includes: A set of jandles with an internal plate and a cover, a 8x105mm spindle, 4 coach screws, 2 through bolts, 2 bolts and an Allen key.

Rosette Product code Finish
Rosette MOA5R800SSIS IS-

Important note: Lever handle set not including the cylinder cover. Please order cylinder cover separately as needed.

Mach Stainless AISI 304

The pack with a rosette includes: A set of jandles with an internal plate and a cover, a 8x105mm spindle, 4 coach screws, 2 through bolts, 2 bolts and an Allen key.

Rosette Product code Finish
Rosette MOA5R800SSIS IS-

Important note: Lever handle set not including the cylinder cover. Please order cylinder cover separately as needed.

Arena stainless AISI 304

The pack with a rosette includes: A set of jandles with an internal plate and a cover, a 8x105mm spindle, 4 coach screws, 2 through bolts, 2 bolts and an Allen key.

Rosette Product code Finish
Rosette MAR5R800SSIS IS-

Important note: Lever handle set not including the cylinder cover. Please order cylinder cover separately as needed.

Funxtion Stainless AISI 304

The pack with a rosette includes: A set of jandles with an internal plate and a cover, a 8x105mm spindle, 4 coach screws, 2 through bolts, 2 bolts and an Allen key.

Rosette Product code Finish
Rosette MFU5R800SSIS IS-

Important note: Lever handle set not including the cylinder cover. Please order cylinder cover separately as needed.

Institutional stainless AISI 304 escutcheons

Key holes Ø50

The pack includes: A set with support pieces and covers. 4 coach screws.

Finish

» IS304

Product code Finish
MBORBOMIS 304 Stainless

Thumb turns Ø50

The pack includes: A set with support pieces and covers. 4 coach screws.

Finish

» IS304

Product code Finish
MBOREMEIS 304 Stainless

Blank

The pack includes: A set with support pieces and covers. 4 coach screws.

Finish

» IS304

Product code Finish
MBOR000IS 304 Stainless

Stainless 304 Pull Handles 19 mm

Maximum resistance and durability. Design and ergonomics. These are the most important features for pull handles oriented

towards the ins_tu_onal segment. They will have to endure in tensive use, due to the high traffic they are subject to, -and meet

func_onality criteria such as ease of evacua_on, etc. They must remain unaffected by any clima_c condi_ons, both indoors and

outdoors. But they must also fit in a esthe_cally with the features of the building, adap_ng to each project with total precision.

General features

» Single or double installa_on, M8x70mm fixing screws included.

» For doors made of wood, glass, metal or PVC.

Materials and finishes

» AISI304 Stainless steel.

» Solid (SS)

Fixa_ons (included)

» Simple fixa_on.

» Double fixa_on.

Sizes

»

Chech for special sizes and diametres.

»

The length of the pull handle correspons to

the d i s t a n c e between axis

»

Pull handle height = 55mm for Ø19mm and

65m m f o r Ø10mm.

Hollow Models (HW)

Product code Model Description
TR19225HWIS Simple Straight unitary pull handle 225x19AISI304
TR19305HWIS Simple Straight unitary pull handle 305x19AISI304
DTR19225HWIS Double Straight unitary pull handle 225x19AISI304
DTR19305HWIS Double Straight unitary pull handle 305x19AISI304

Stainless 304 Pull Handle 30mm

Maximum resistance and durability. Design and ergonomics. These are the most important features for pull handles oriented

towards the ins_tu_onal segment. They will have to endure intensive use, due to the high traffic they are subject to, and

meet func_onality criteria such as ease of evacua_on, etc. They must remain unaffected by any clima_c condi_ons, both

indoors and outdoors. But they must also fit in aesthe_cally with the features of the building, adap_ng to each project with

total precision.

General features

» Simple or double installa_on. Fixa_ons included.

» For doors made of wood, glass, metal or PVC.

Materials and finishes

» AISI304 Stainless steel.

Fixa_ons (included)

» Simple fixa_on.

» Double fixa_on.

» Fixa_on in glass, wood and aluminium

Sizes

» Standard sizes 300mm and 400mm.

» Call Fortress Land for special sizes

» The length of the pull handle correspons

to the distance

between axis

»Handle height: 9 0 mm in all models.

Straight type

Product code Model Description
DTSR350IS Double Set of straight unitary pull handles 350X30AISI304

Bent type

Product code Model Description
TSC300IS Simple Bent unitary pull handle for 1 door (one side only) 300X30AISI304
TSC400IS Simple Bent unitary pull handle for 1 door (one side only) 400X30IAISI304
DTSC300IS Double Set of bent unitary pull handles for 1 door (in & out) 300X30AISI304
DTSC400IS Double Set of bent unitary pull handles for 1 door (in & out) 400X30AISI304

stainless steel lever handle, stainless steel door handle, stainless steel door pull, 304 lever handle, 316 lever handle, weather proof door lever handle, stainless steel push & Pull handle, Fortress Land Security Company, Yangon, Myanmar.

Download PDF

Products Categories

Architecture

Security has become one of the main issues for modern daily environment.

Security

Security has become one of the main issues for modern daily environment.

Hotel

Security has become one of the main issues for modern daily environment.

Automation

Security has become one of the main issues for modern daily environment.
Head Office
No. 140, Pyi Htaung Su Yeik Thar Street, Dagon Twonship,Yangon, Myanmar
+959 78 5020 552, +959 79 5020 552
sales @fortressland-security.com
www.fortressland-security .com
All right reserved by Fortress Land Security Systems Myanmar. Created by IDEA SPACE.
er
