The door closes, always!
Easy to install, wide tolerances
between hook and striker allow
perfect closure, in any case.
The special movement of the hook and the considerable coupling tolerance with the stiker, make the door always close, even tacing vertical settlements after the installation.
The hook throws from the lock forend and rotate onto the striker plate when closing.
Scivola T and Scivola Tre transmit a pleasant sensation of smoothness by moving the handle and the key, thanks to a great precision in the mechanical coupling and the smooth internal kinematics.
After the installation of the lock and the throw of the hook, by softly pushing the door against the jamb it
is possible to centre the striker.
The striker installation has never been so simple: it just takes a milling of ø 25 mm and a drill. Jigs are not required.
Thanks to the specia shape, the covering tray is simply and precisely positioned into the milling.
In less than 1 minute it is possible to mount the striker reaching a valuable aesthetic result.
The patented head of the hook distinguishes for being sharpened. It works as a jig,marking the centre of the milling on the jamb for the striker housing.
Wide range of kits including Scivola locks with round, oval and the new square handles.

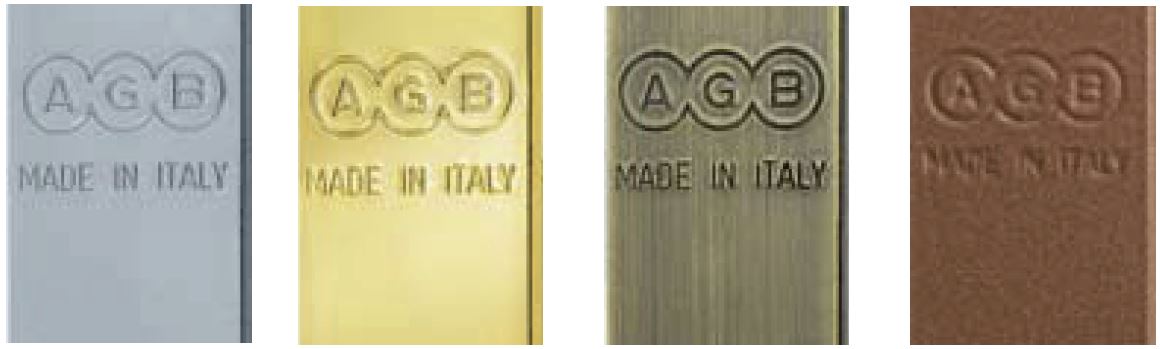

Standard Finishes:
Other available finishes:
Embedded lock with receeding hook, striker included. Mad entirely of steel. 16 mm forend with round ends. 35 and 50 mm backset, 40 on request. Striker with frontal maximum width 30 mm
Lock for internal sliding doors with hook, which throws from the lock forend and rotate onto the striker plate
when closing. The coupling between door and frame is guaranteed by the extension of the lock. The hub of the handle operates the hook which can be locked by the key.
Prepare cutout and mill the panel according to the dimensions shown in the diagram. Secure the lock and striker with four 4×20 mm screws.
Each pack contains a lock with striker and pocket. There are no through screw holes for cylinder covers.
Scivola T – Cylinder Lock
| Model Description | Forend (mm) | Material | Backset | Finish | Item Code | Note |
| Sliding doors Scivola – locks only | 16 x 160 | Steel | 50mm | Matt Chromium Plated | B08922.50.34 | Includes Strike Plate |
| Sliding doors Scivola – locks only | 16 x 160 | Steel | 50mm | Enamelled Brass Plated | B08922.50.03 | Includes Strike Plate |
Lock kit with hook and steel and flush pull with thumb turn, without key. Notched locking cam on the outside for emergency opening. All the elements have been designed to eliminate any superfluous projectections.
For concealed, sliding timber doors on bathrooms or any room where the door is closed from on side only and does not require a key to lock it. Suitable for panes with a thickness of 40-80 mm.
The pulls are directly secured by expansion squared spindle,automatically adapting to 40-80 mm doors, without any
Additional screw or plastic striker plate. Follow the assembly instruction provided with the kit.
All the kit components come in a single package.
Scivola Tre round with Privacy kit for 40-48 mm thickness doors
| Model Description | Forend(mm) | Material | Backset | Finish | Item Code |
| Scivola Tre- Privacy kit | 16×160 | Steel | 50mm | Matt chromium plate | B04934.50.34 |
| Scivola Tre- Privacy kit | 16×160 | Steel | 50mm | Enamelled brass plated | B04903.5003 |
Note: For doors smaller than 40 mm, please putring adapter.
